What Is 3 Legged Angular Steel Tower?
3 legged angular steel tower is a kind of self-supporting communication tower. It can also be called 3 legged angular steel communication tower, telecommunication tower, antenna tower.
3 legged angular steel tower are higher steel structures used all over the world for communication applications. Their function to support antennas for telecommunications, broadcasting and WIFI internet. 3 legged angular steel tower is usually come with pre-designed accessories, just like platforms, ladders with cable tray, antenna brackets, aviation light brackets and fall prevention device, etc.
3 legged angular steel tower are based on either ground or building, and they are commonly designed in trusses structure to carry the wind loads and seismic loads. 3 legged angular steel tower need less ground area and suit to construct in many situations.
Highlights of JIAYAO self-supporting tower
● Leading design concept.
● Versatility, modular design, flexible configuration of accessories.
● Tower group design, modification and adjustment.
● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.
● Lower costs.
● Self-supporting tower light weight.
● Self-supporting tower installation cost is good.
● Self-supporting tower installation time is short.
● High reliability.
● The design and processing of JIAYAO's self-supporting tower products are in line with ISO 9001:2000 quality management system.
● 50 years design life.
What Is The Details of JIAYAO 3 Legged Angular Steel Tower?
Design standard | TIA/EIA-222-G/F |
Welding standard | AWS D1.1 |
Galvanization standard | ASTM A123 |
Design Wind Speed | Up to 200 km/h |
Angular steel Material quality | Mild Steel:Q235B/ASTM A36/S235JR |
High Steel:Q345B/ASTM A572/S355JR | |
Allowable deflection | 0.5 ~1.0 degree |
Bolt grade | Gr 4.8, Gr 6.8, Gr 8.8 |
Marking | Hydraulic Press Stamping |
What is the height of JIAYAO 3 Legged Angular Steel Tower we can provide?
10m up to 50m is the tower height we can provide.
How to install the antenna on JIAYAO 3 Legged Angular Steel Tower?
What antenna can be mounted on JIAYAO 3 Legged Angular Steel Tower?
Type of antenna | Description |
Panel antenna (sector antenna) | GSM antenna for 5G:2.52m×0.265m×0.13m, 1.31m×0.32m×0.11m |
Parabolic reflector(dish antenna) | Microwave antenna Diameter:0.6m, 0.9, 1.2m, 1.6m, 1.8m, 2.4m |
RRU | Radio Remote Unit:0.45m×0.32m×0.25m |
WIFI antenna | Grid or parabolic directional antenna / yagi / omnidirectional antennas |
Other Antenna | VHF/UHF Dual-band Antenna FM antenna |

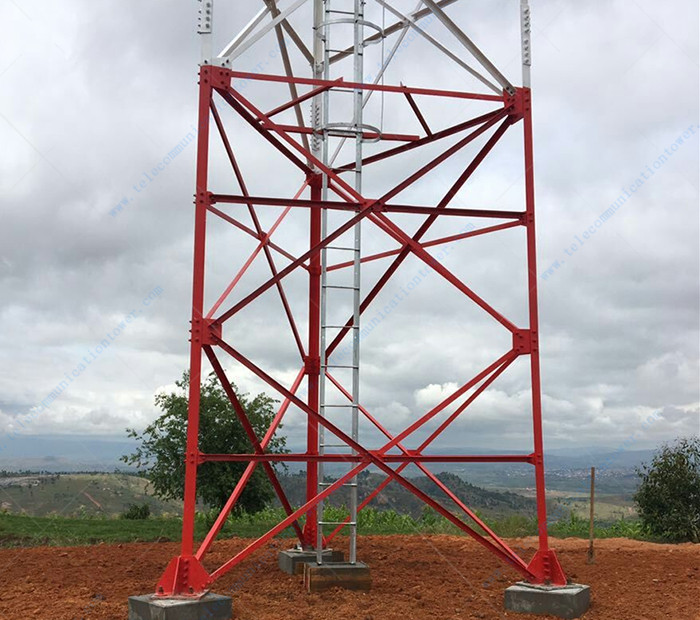

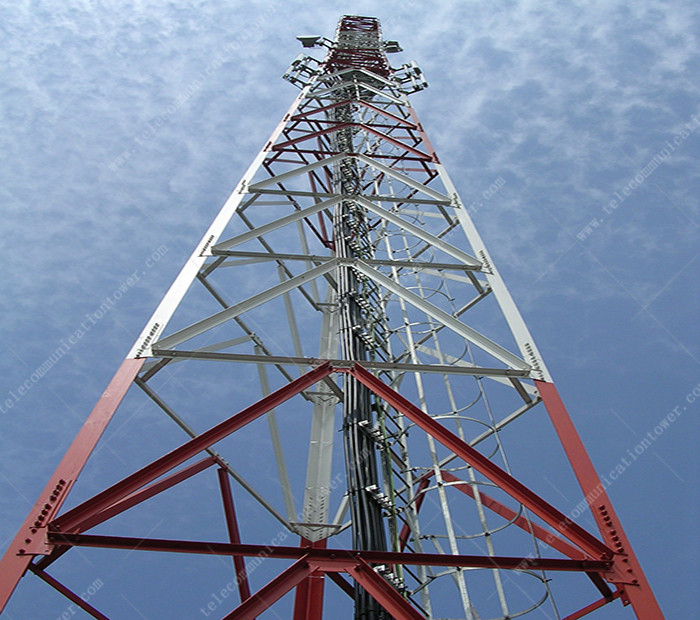

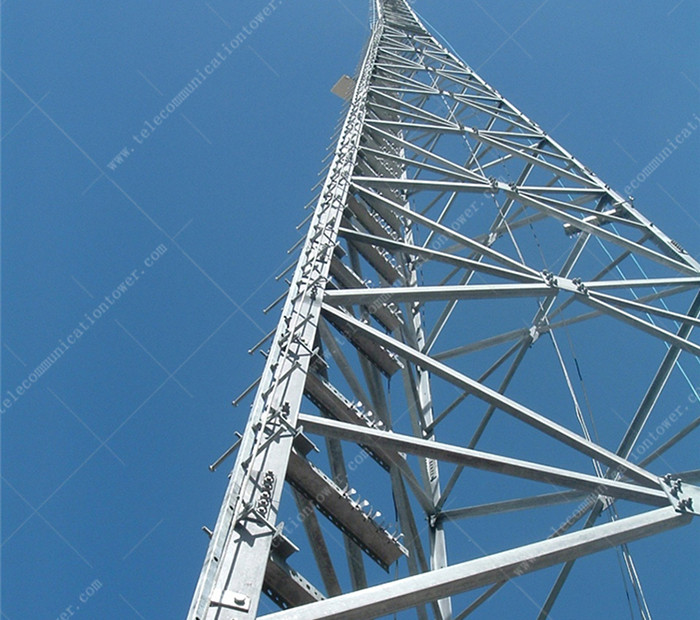

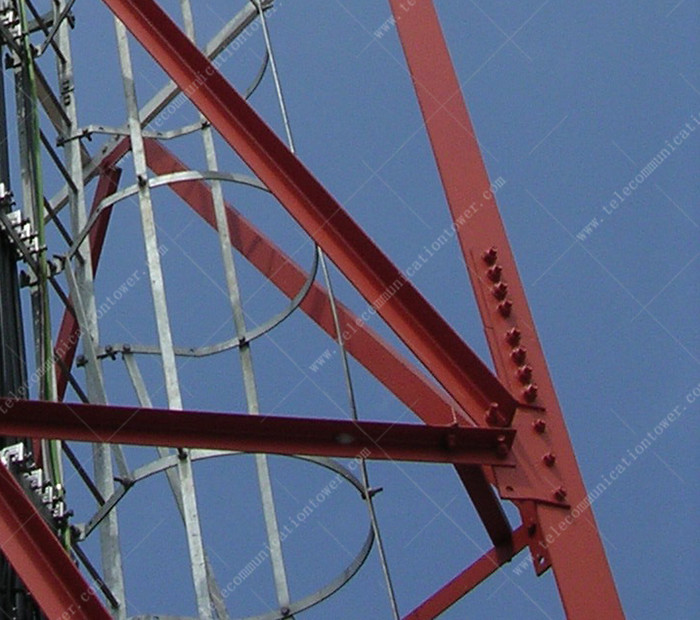

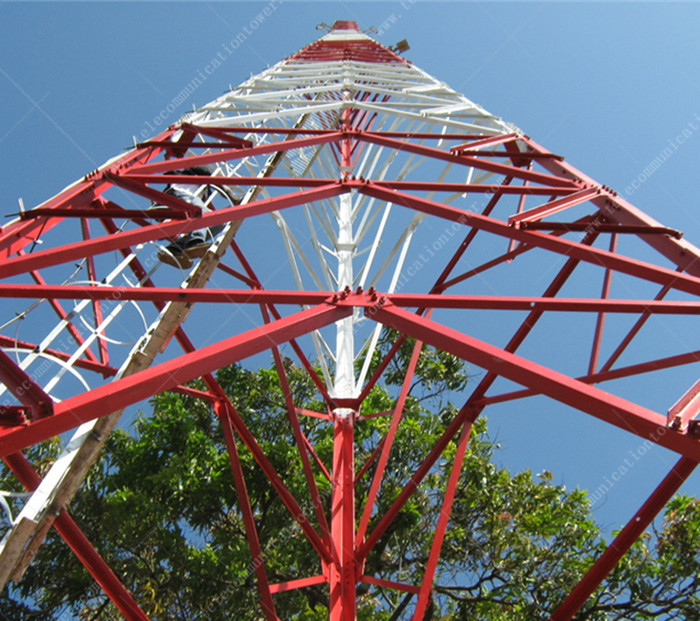

The deailed pictures of JIAYAO 3 Legged Angular Steel Tower
Why choose us?
10 years
Manufacturing & exporting experience.
Exported to more than 55 countries.
24-hour service throughout the year.
We are committed to providing customers with the most optimized solutions and the competitive prices.
OEM/ODM orders are welcome.We are trying to meet all your needs.
We normally send the towers by sea.
For small orders,the tower can be delivered
Within 15 days.
Material from famous steel mill in China.
How to control the quality by JIAYAO
In order to ensure product quality, we JIAYAO use CNC production equipment and use modern manufacturing technologies to manufacture communication towers, and the multi-item templates, bending dies, jigs and fixtures can be reused in case of repeat orders. We also strive to perfectly complete each small quantity order and proto item production.
The first piece of each different type of template is duly inspected by our specialized Quality Inspectors, thus ensuring accurate and quality manufacturing. The quality of our self supporting communication tower is controlled through sample check during process, and then 100% quality inspection before leaving factory.
Thus, we are confident that all our radio towers are qualified, and users can feel secure in purchasing.
