A 30-meter tower monopole refers to a tower with a height of 30 meters.

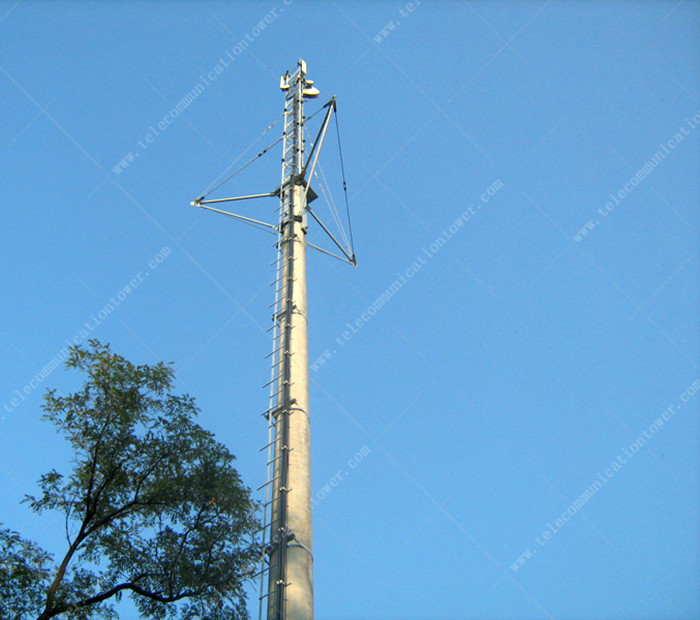

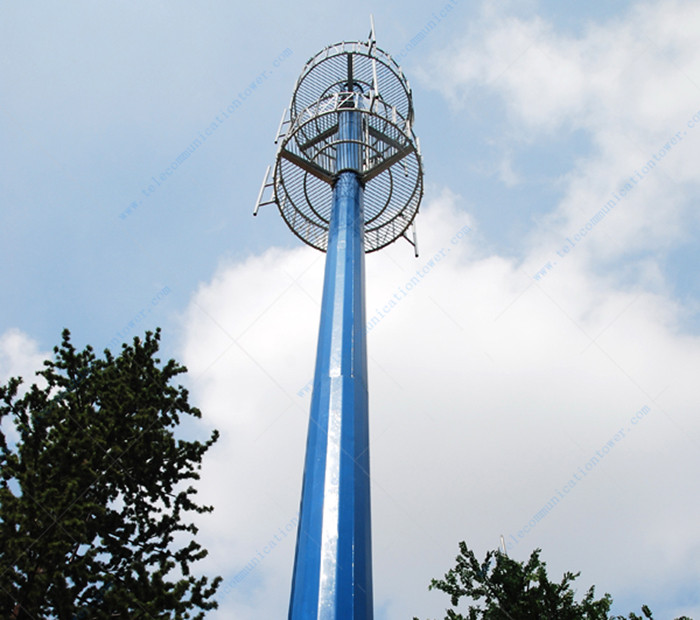

A monopole tower that is 30 meters in height refers to a specific type of tower structure that consists of a single vertical pole or column and has a height of 30 meters (98.4 feet).
The monopole design typically features a cylindrical or polygonal-shaped pole made of materials such as steel or concrete. It is often used in the telecommunications industry to support antennas and other communication equipment. If you are interested in our monopole communication tower please contact us.
A monopole tower of 30 meters is considered a medium-sized tower and is suitable for various applications, including cellular communication, wireless broadband, and radio broadcasting. The 30-meter height allows for improved signal coverage and transmission range in the surrounding area.
The compact footprint and sleek design of a monopole tower make it suitable for urban or densely populated areas where space constraints and aesthetic considerations are important. It can be installed on rooftops, parking lots, or other locations with limited space.
Height: The tower monopole stands at a height of 30 meters (approximately 98 feet) from the ground level to the top.
Single Pole Structure: Unlike lattice towers that consist of multiple interconnected elements, a monopole tower features a single vertical pole. This design provides simplicity and ease of installation.
Material: Tower monopoles are typically constructed using high-strength steel. The steel is chosen for its durability, strength, and ability to withstand environmental conditions.
Self-Supporting: A 30-meter monopole tower is usually self-supporting, which means it doesn't require additional guy wires or external support structures. It relies on its own structural integrity to stand upright.

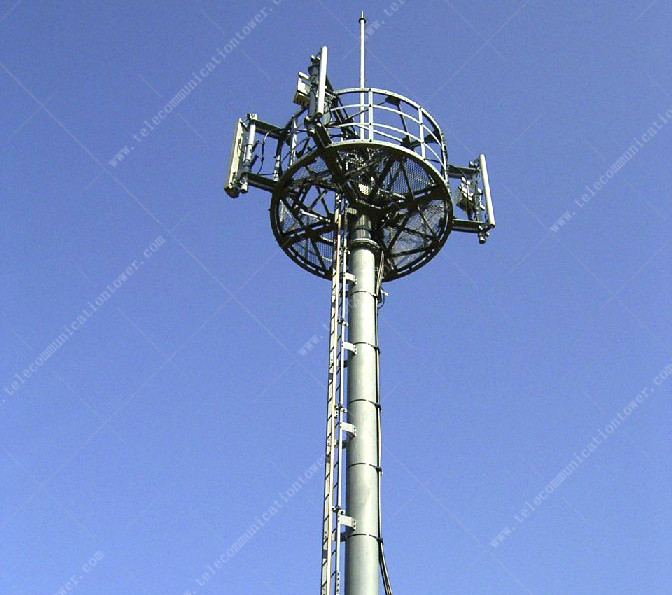

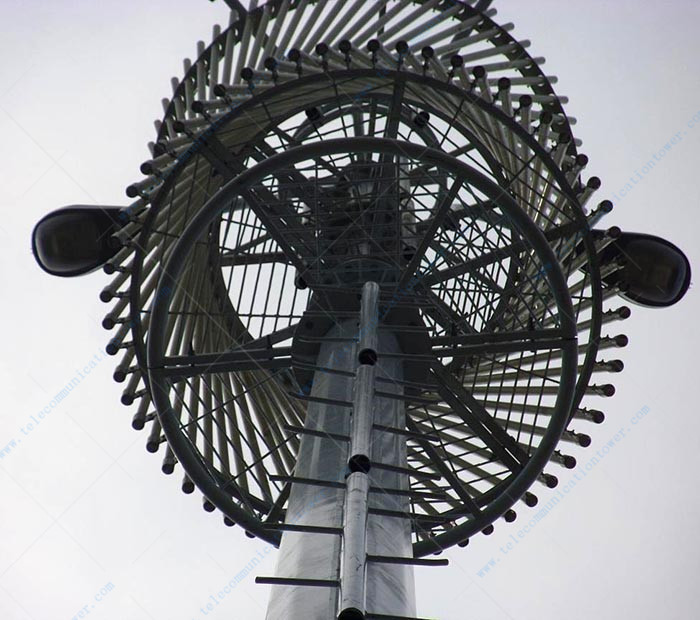

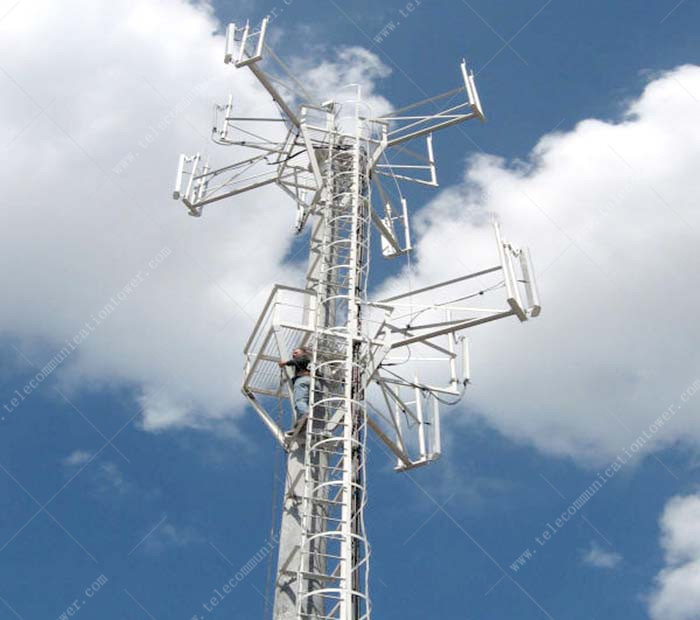

Antenna Mounting: The monopole tower is designed to accommodate various antennas and communication equipment. It often features multiple platforms or brackets at different heights for mounting antennas and other devices.
Concealment Options: Tower monopoles can also be designed with aesthetic considerations in mind. Some monopoles offer concealment options, such as integrated pole covers or antenna shrouds, to help blend the structure into the surrounding environment.
Wind Loading: The tower monopole is engineered to withstand wind forces. The design and construction take into account factors like wind speed, local climate conditions, and applicable building codes to ensure structural stability.
Installation: Tower monopoles are typically assembled on-site, section by section, and installed using cranes or other lifting equipment. The installation process may require a foundation, such as a concrete pad or anchor bolts, to secure the base of the monopole.
Design standard | TIA/EIA-222-G/F |
Welding standard | AWS D1.1 |
Galvanization standard | ASTM A123 |
Design Wind Speed | Up to 200 km/h |
Angular steel Material quality | Mild Steel:Q235B/ASTM A36/S235JR |
High Steel:Q345B/ASTM A572/S355JR | |
Allowable deflection | 0.5 ~1.0 degree |
Bolt grade | Gr 4.8, Gr 6.8, Gr 8.8 |
Marking | Hydraulic Press Stamping |
Type of antenna | Description |
Panel antenna (sector antenna) | GSM antenna for 5G:2.52m×0.265m×0.13m, 1.31m×0.32m×0.11m |
Parabolic reflector(dish antenna) | Microwave antenna Diameter:0.6m, 0.9, 1.2m, 1.6m, 1.8m, 2.4m |
RRU | Radio Remote Unit:0.45m×0.32m×0.25m |
WIFI antenna | Grid or parabolic directional antenna / yagi / omnidirectional antennas |
Other Antenna | VHF/UHF Dual-band Antenna FM antenna |
10 years
Manufacturing & exporting experience.
Exported to more than 55 countries.
24-hour service throughout the year.
We are committed to providing customers with the most optimized solutions and the competitive prices.
OEM/ODM orders are welcome. We are trying to meet all your needs.
We normally send the towers by sea.
For small orders,the tower can be delivered
Within 15 days.
Material from famous steel mill in China.
