A guyed tower or mast is a tall structure that is supported by a system of guy wires or cables. It is commonly used in telecommunications, broadcasting, and other industries to support antennas, communication equipment, and various instruments. In this guide, we will explore the construction, components, and key considerations associated with guyed towers and masts.
Guyed towers and masts are typically made of steel, which provides the necessary strength and durability. The structure consists of several key components:
a. Tower/Mast Sections: The tower/mast is constructed by assembling multiple sections or segments that are bolted or welded together. Each section is designed to be of manageable size for transportation and installation.
b. Foundation: A solid foundation is crucial to support the weight and stability of the tower/mast. The foundation is usually a reinforced concrete base that is engineered to withstand the loads imposed by the structure and the surrounding soil conditions.
c. Guy Wires/Cables: Guy wires or cables are tensioned steel wires that provide the necessary support and stability to the tower/mast. These wires are anchored to the ground at specific points away from the tower/mast and are attached to the structure at higher levels. The number and arrangement of guy wires depend on the height and design of the tower/mast.
d. Anchors: Anchors are buried in the ground and serve as the attachment points for the guy wires/cables. They are typically made of concrete, steel, or other suitable materials and are designed to withstand the tension forces applied by the guy wires.

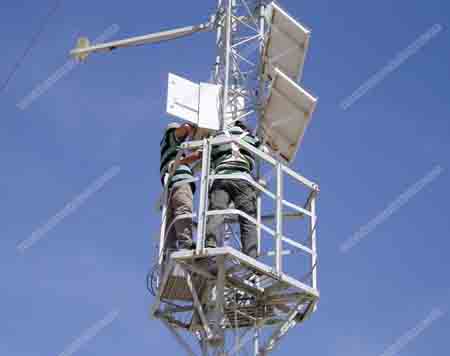

Guyed Wire Wind Measurement Tower
The guy wire system plays a critical role in maintaining the stability and safety of the tower/mast. It consists of the following elements:
a. Main Guy Wires: The main guy wires are the primary support cables that are attached to the tower/mast at predetermined levels. These wires are anchored to the ground at specific distances from the structure, forming a triangular or square configuration. The tension in the main guy wires counteracts the vertical and horizontal forces acting on the tower/mast.
b. Anchor Points: The guy wires are secured to anchor points, which are usually driven into the ground or embedded in concrete. The anchor points are strategically positioned to provide the necessary resistance against the tension forces exerted by the guy wires.
c. Tensioning Devices: Tensioning devices, such as turnbuckles or come-alongs, are used to adjust the tension in the guy wires during installation or maintenance. These devices allow for precise tensioning of the wires to ensure the tower/mast remains plumb and stable.

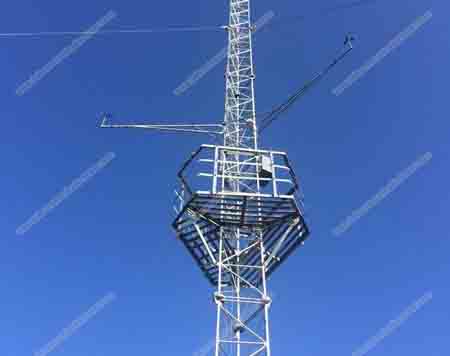

Steel Wind Measurements 3 Legged Guyed Tower
Installing and maintaining guyed towers and masts require careful planning and adherence to safety guidelines. Some key considerations include:
a. Site Selection: The location for the tower/mast should be chosen based on factors such as soil conditions, wind loads, accessibility, and proximity to existing structures or power lines. It is important to comply with local regulations and obtain any necessary permits or approvals.
b. Engineering and Design: The design of the tower/mast and its guy wire system should be performed by qualified structural engineers who consider factors such as height, load requirements, wind forces, and structural stability. The design should meet industry standards and ensure the safety of personnel and equipment.
c. Installation Process: The installation process involves assembling the tower/mast sections, erecting them vertically, and tensioning the guy wires. Proper equipment, tools, and techniques should be used to ensure a safe and efficient installation.
d. Maintenance and Inspections: Regular maintenance and inspections are essential to identify any signs of wear, corrosion, or damage to the tower/mast or the guy wire system.
